Description

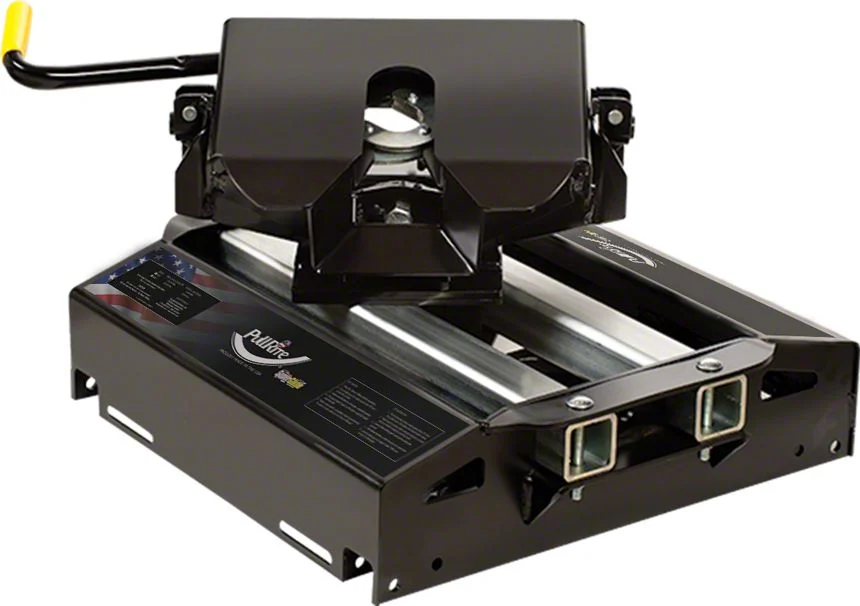

Innovative SuperGlide Design. The Traditional Series 20K SuperGlide 5th Wheel Hitch provides a safe and effortless towing experience for short bed trucks. It automatically moves the trailer away from the truck cab during turns to prevent contact, allowing up to 90-degree turns without needing to stop or adjust. This automatic operation enhances maneuverability and safety, making it ideal for demanding towing conditions.
Construction and Appearance. Featuring a fully articulating dual pivot head and a gear-driven rotary latch designed for close tolerance and minimal bump during towing, this hitch offers a smooth ride experience. The entire body is finished with a durable black powder coat that provides corrosion resistance and a long-lasting appearance. The removable hitch plate weighs 43 pounds and can be installed or removed without tools for added convenience.
Installation. The hitch is designed for easy installation, with no special tools required for removing or installing the hitch plate. It offers flexible mounting options including fixed base rails or removable SuperRails featuring Clean Bed Technology, allowing adaptability to a variety of vehicle mounts.
Warranty and Application. Backed by a five-year limited warranty, this product ensures reliable performance and peace of mind. It is specifically designed to fit 2002-2018 RAM 1500 trucks equipped with a 6.4-foot box, ensuring proper compatibility for this truck model and configuration.
CA Residents: WARNING: Cancer and Reproductive Harm
- SuperGlide Is The Only True Solution To Safe Fifth Wheel Towing With Short Bed Trucks
- Automatically Moves The Trailer Away From The Cab While Making Turns
- Allows Up To 90° Turning Without Stopping Or Slowing Down
- Automatically Returns The Hitch And Trailer To The Safe Towing Position Over The Truck Axle When Turn Is Completed
- Features Fully Articulating Dual Pivot Head And Unique Rotary Latch That Locks Automatically
- Gear Driven Latch Design Minimizes Bump While Towing With Only .030″ Clearance Between King Pin And Latch
- Moves Up To 14″ During Turns, 50% Farther Than Manually Adjusted Slider Designs
- Capture Plate Is A Required Component That Is Attached To The Trailer’s Skid Plate To Isolate Rotation Of Trailer’s King Pin
- Dual-Articulating Hitch Head Moves Side-To-Side And Front-To-Back For Smoother Ride And Uneven Ground Coupling
- Removable Hitch Plate Weighs 43 Lbs And Requires No Tools For Removal Or Installation
- Available With Fixed Base Rails Or Removable SuperRails Featuring Clean Bed Technology
- Meets SAE J2638 Testing And Is Accurately Weight Rated
- Has Maximum Trailer Weight Capacity Of 20,000 Lbs And Pin Weight Capacity Of 5,000 Lbs
- Overall Dimensions Are 24″ Wide X 24″ Long X 15.5″ High
- Finished With Black Powder Coat
- Comes With A Five Year Limited Warranty
- Fits 02-18 RAM 1500 w/ 6.4-Foot Box
