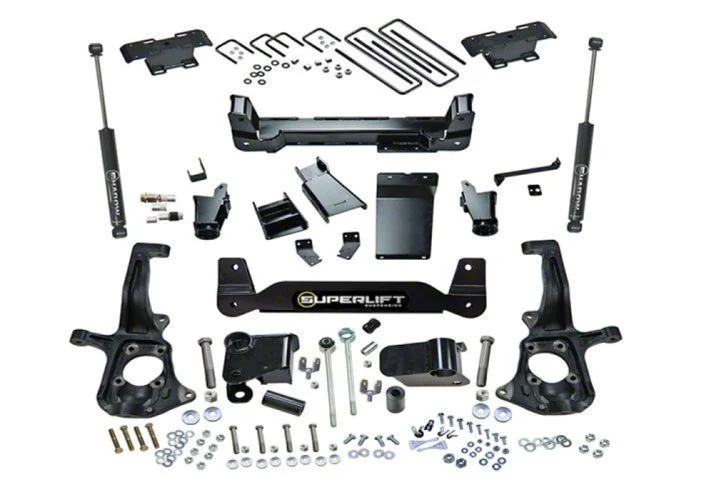

Commanding Stance. Add a commanding, stance to your 2011-2019 4WD Sierra 2500 HD SRW by upgrading to a SuperLift 6-Inch Suspension Lift Kit that includes Shadow Series Rear Shocks. With 6 inches of lift, this kit can accommodate tires up to 37 x 12.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This SuperLift Lift Kit features lifted steering knuckles, crossmembers, torsion bar brackets, front shock extensions, as well as rear lift block spacers. What’s more, the included Shadow Series Rear Shocks provide incredible dampening capacity for aggressive on and off-road driving.
Shadow Series Rear Shocks. SuperLift includes nitrogen-charged, twin-tube Shadow Series Shocks in this kit for improved handling. Featuring a hardened chrome piston rod, these Shadow Series Shocks have a 2-inch diameter, straight-wall shock body that allows for improved heat dissipation. These Shocks are completed in durable, gunmetal grey finish for impressive good looks and long lasting durability.
Lifted Steering Knuckles. SuperLift includes a set of heavy duty replacement steering knuckles in their 6-inch Suspension Lift Kit. These lifted steering knuckles are CNC-machined from iron for precision and superior strength. The knuckles are designed to increase ride height while keeping all components at the optimum angles for a factory-like ride.
Fabricated Rear Lift Blocks. The Rear Lift Blocks included in this SuperLift Kit have been fabricated from high grade steel for superior strength and extra rigidity. This fabricated block replaces the stock block and allows for proper pinion and axle angle all while reducing axle wrap.
Bolt-on Installation. SuperLift engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 8 hours time. Please note that an alignment is highly recommended after installation.
Application. This SuperLift 6-Inch Knuckle Suspension Lift Kit with SuperLift Shadow Series Shocks is designed to fit 2011-2019 4WD GMC Sierra 2500 HD SRW models without MagneRide.
Application Notes.
Recommended Tire Wheel Sizes.
- 35 x 12.5 – 18 x 9 with 4.5-4.625 backspacing
- 35 x 12.5 – 20 X 9 with 5-6 backspacing
- 37 x 12.5 – 18 x 9 with 4.5-4.625 backspacing
- 37 x 12.5 – 20 x 9 with 5-6 backspacing
SuperLift K150S
CA Residents: WARNING: Cancer and Reproductive Harm
- Suspension Lift Kit – 6-inch Lift
- Maintains Ride Quality and Handling Characteristics
- Increases Ground Clearance
- Lifted Steering Knuckles
- Superlift Shadow Series Shocks – Rear
- Front Shock Extensions
- Fabricated Steel Rear Lift Blocks
- “No Drop” Torsion Bar Brackets
- Accommodates up to 37-inch Tall Tires
- Straight Forward Bolt-on Installation
- Not for use with Factory Wheels
- Does Not fit Dually Models
- Fits 2011-2019 4WD Sierra 2500 HD SRW Models without MagneRide
| Brand | SuperLift |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Brand of Shocks | SuperLift |
