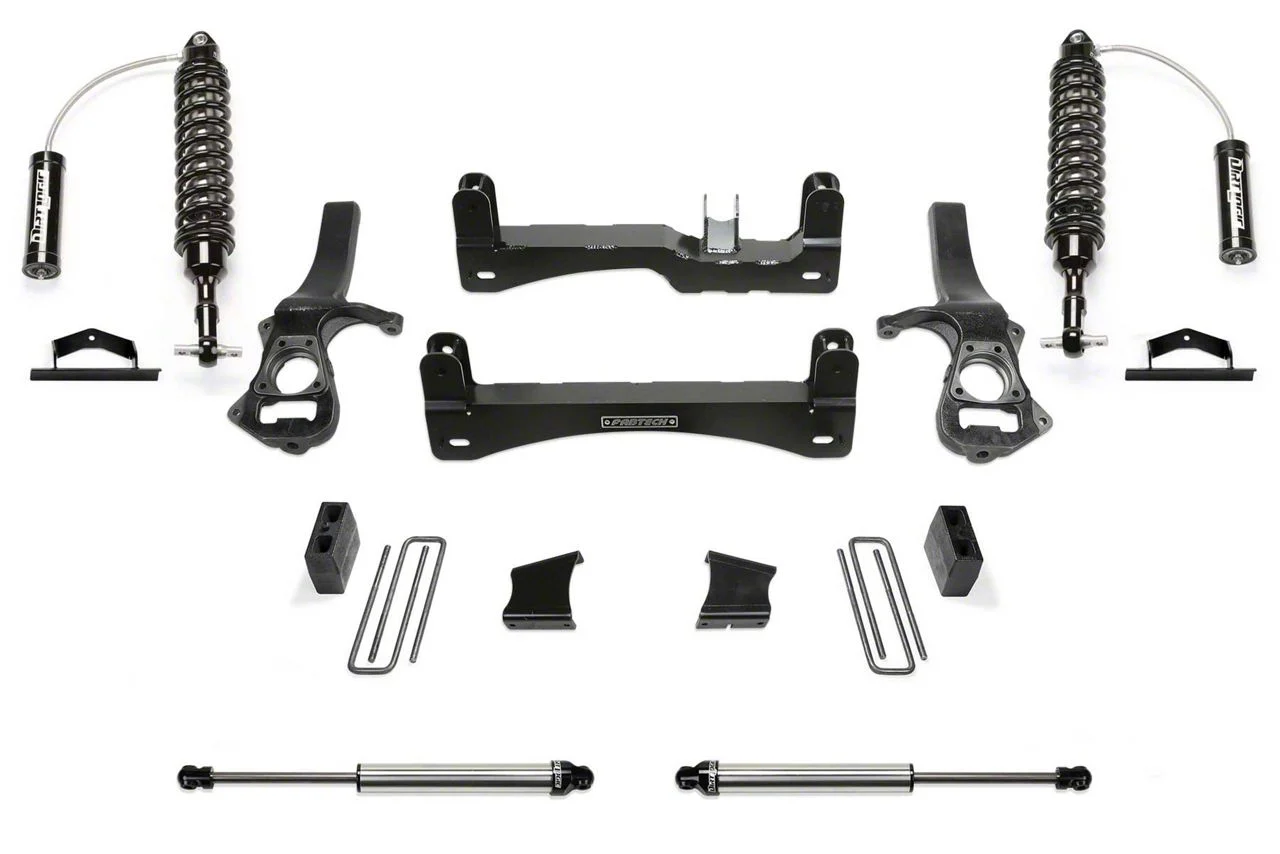

Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks (19-24 2WD Sierra 1500 Crew Cab w/ 5.80-Foot Short Box, Excluding AT4 & Denali)

Description

Lifted Stance. Add a commanding, lifted off-road stance to your 2019-2024 2WD GMC Sierra by upgrading to a Fabtech 6-Inch Performance Suspension Lift Kit that includes Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks. With 6.0 inches of lift, this kit can accommodate tires up to 35 x 12.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This Fabtech Performance Lift Kit features extended length steering knuckles as well as lift blocks and lower control arm crossmembers. What’s more, the included Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks provide incredible dampening capacity for aggressive off-road driving.

Dirt Logic 2.5 Reservoir Front Coil-Overs. Fabtech includes Dirt Logic 2.5 Reservoir Front Coil-Overs in this kit to ensure controlled dynamics with improved handling. These Coil-Overs have 2.5-inch OD stainless steel bodies with a 2.25-inch OD billet aluminum piston and 7/8-inch NitroSteel® black piston rods. With an adjustable Coil-over construction, these Coil-Overs feature cold wound coil springs and 5/8-inch spherical ball mounting ends. Additionally, these Coil-overs feature a 2.50-inch OD aluminum reservoir with -8 stainless steel O-ring hose.

Dirt Logic 2.25 Rear Shocks. Fabtech Dirt Logic 2.25 Rear Shocks ensure a superior ride, both on and off road. These Rear Shocks have 2.25-inch OD stainless steel bodies with a 2.0-inch OD billet aluminum piston and 7/8-inch NitroSteel® black piston rods. These Shocks are specifically pre-tuned for Fabtech suspensions, accounting for larger tires, providing the finest all around damping.

Iron Steering Knuckles. Fabtech includes a set of heavy duty, extended length steering knuckles in their 6-inch Performance Suspension Lift Kit. These steering knuckles are manufactured from ductile iron for superior strength. The knuckles have a near stock track width that keeps your tires under the fenders for a clean appearance.

Rear Lift Blocks. Rear lift is accomplished by removing the factory blocks and replacing them with the included 5-inch lift blocks and u-bolts. The included u bolts and fasteners allow for a straight forward installation. These lift blocks are cast from iron steel for superior strength.

Crossmembers. The lower control arm crossmembers are constructed from 1/4-inch thick steel plate for superior strength. The welded box design of these lower control arm crossmembers will provide additional strength to the front suspension. These crossmembers retain factory alignment cams for easy adjustment.

No Welding Required. Fabtech engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 6 hours time.

Application. This Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks is designed to fit 2019-2024 2WD GMC Sierra 1500 Crew Cab models with Short Box, excludes AT4, Denali and diesel.

Technical Note. Will not fit models equipped with adaptive ride control. Not for use with OEM wheels and tires.

Recommended Tire Wheel Sizes.

• 35/12.50R18 – 18×9 with 5-inch backspacing, with minor trimming
• 295/70R18 – 18×9 with 5-inch backspacing, with minor trimming
• 35/12.50R20 – 20×9 with 5-inch backspacing, with minor trimming
• 295/65R20 – 20×9 with 5-inch backspacing, with minor trimming

Fabtech K1151DL

CA Residents: WARNING: Cancer and Reproductive Harm

• Performance 6-inch Suspension Lift Kit
• Front Lift – 6.0 Inch; Rear Lift 5.0 Inch
• Corrects Factory Rake for a Level Stance
• Increases Ground Clearance for Improved Off-Roading
• Dirt Logic 2.5 Reservoir Front Coil-Overs
• Dirt Logic 2.25 Rear Shocks
• Extended Length Ductile Iron Steering Knuckles
• Steel Rear Lift Blocks
• Heavy Duty Steel Crossmembers
• Accommodates up to 35-inch Tall Tires
• Straight Forward Bolt-on Installation
• Not for use with OEM Wheel and Tires
• Will Not Fit Adaptive Ride Control Models
• Fits 2019-2024 2WD Sierra 1500 Crew Cab w/ Short Box, Excluding AT4, Denali & Diesel
