Description

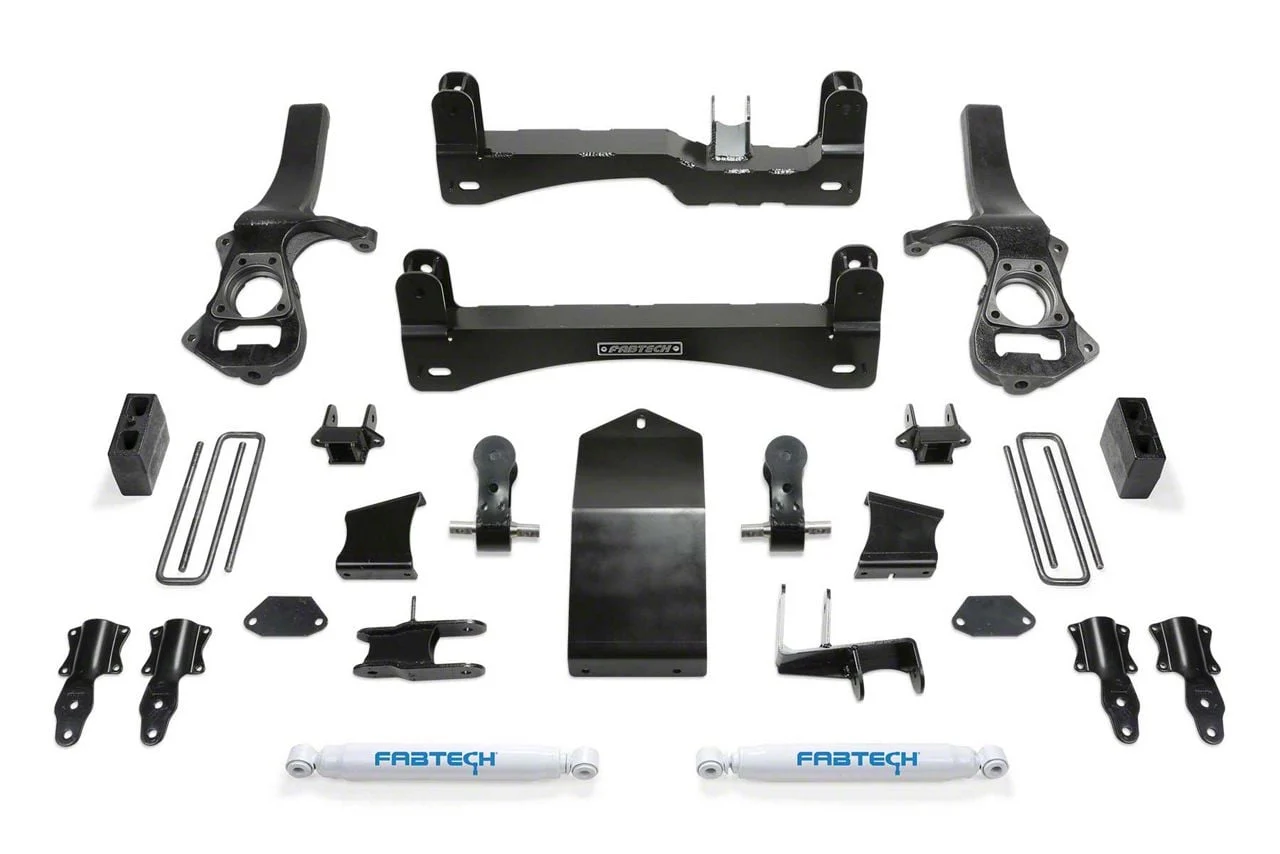

Lifted Stance. Add a commanding, lifted off-road stance to your 2019-2024 AT4 Sierra by upgrading to a Fabtech 4-Inch Basic Suspension Lift Kit that includes Performance Shocks. With 4.0 inches of lift, this kit can accommodate tires up to 35 x 12.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This Fabtech Basic Lift Kit features extended length steering knuckles as well as lift blocks, coilover spacers, front differential skid plate and lower control arm crossmembers. What’s more, the included Performance Rear Shocks provide a highly comfortable ride, even across the roughest terrain.
Performance Shocks. Fabtech included rear Performance Shocks in this kit to ensure controlled dynamics with improved handling. Each shock features a twin-tube hydraulic configuration with hardened chrome piston rods. In addition, the high-flow 9-stage valving offers reinforced damping capabilities and the closed-cell inserts reduce shock fade at high speeds.
Iron Steering Knuckles. Fabtech includes a set of heavy duty, extended length steering knuckles in their 4-inch Basic Suspension Lift Kit. These steering knuckles are manufactured from ductile iron for superior strength. The knuckles have a near stock track width that keeps your tires under the fenders for a clean appearance.
Lift Blocks and Coilover Spacers. Front lift is obtained by relocating the factory Coilovers with heavy duty lower mounts to raise the vehicle while retaining the stock ride quality. This positions the Coilover properly to provide 4 inches of lift without coil bind or over extending the travel that can lead to damaged suspension parts in the future. Rear lift is accomplished by removing the factory 2-inch blocks and replacing them with the included 5-inch lift blocks and u-bolts.
Skid Plate and Crossmembers. Both the front differential skid plate and lower control arm crossmembers are constructed from 1/4-inch thick steel plate for superior strength. The skid plate will protect the front differential from rocks and obstacles, while the lower control arm crossmembers will provide additional strength to the front suspension. The crossmembers retains factory alignment cams for easy adjustment.
No Welding Required. Fabtech engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 6 hours time.
Application. This Fabtech 4-Inch Basic Suspension Lift Kit with Performance Shocks is designed to fit 2019-2024 Sierra 1500 AT4 4WD models, excluding diesel.
Technical Note. Will not fit models equipped with adaptive ride control. Not for use with OEM wheels and tires.
Recommended Tire Wheel Sizes.
- 35/12.50R18 – 18×9 with 5-inch backspacing, with minor trimming
- 295/70R18 – 18×9 with 5-inch backspacing, with minor trimming
- 35/12.50R20 – 20×9 with 5-inch backspacing, with minor trimming
- 295/65R20 – 20×9 with 5-inch backspacing, with minor trimming
Fabtech K1136
CA Residents: WARNING: Cancer and Reproductive Harm
- Basic 4-inch Suspension Lift Kit
- Front Lift – 4.0 Inch; Rear Lift 3.0 Inch
- Corrects Factory Rake for a Level Stance
- Increases Ground Clearance for Improved Off-Roading
- Twin Tube Performance Rear Shocks
- Extended Length Ductile Iron Steering Knuckles
- Coilover Spacers and Rear Lift Blocks
- Heavy Duty Steel Crossmembers and Skid Plate
- Accommodates up to 35-inch Tall Tires
- Straight Forward Bolt-on Installation
- Not for use with OEM Wheel and Tires
- Will Not Fit Adaptive Ride Control Models
- Fits 2019-2024 GMC Sierra 1500 AT4 4WD, Excluding Diesel
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Brand of Shocks | Fabtech |
