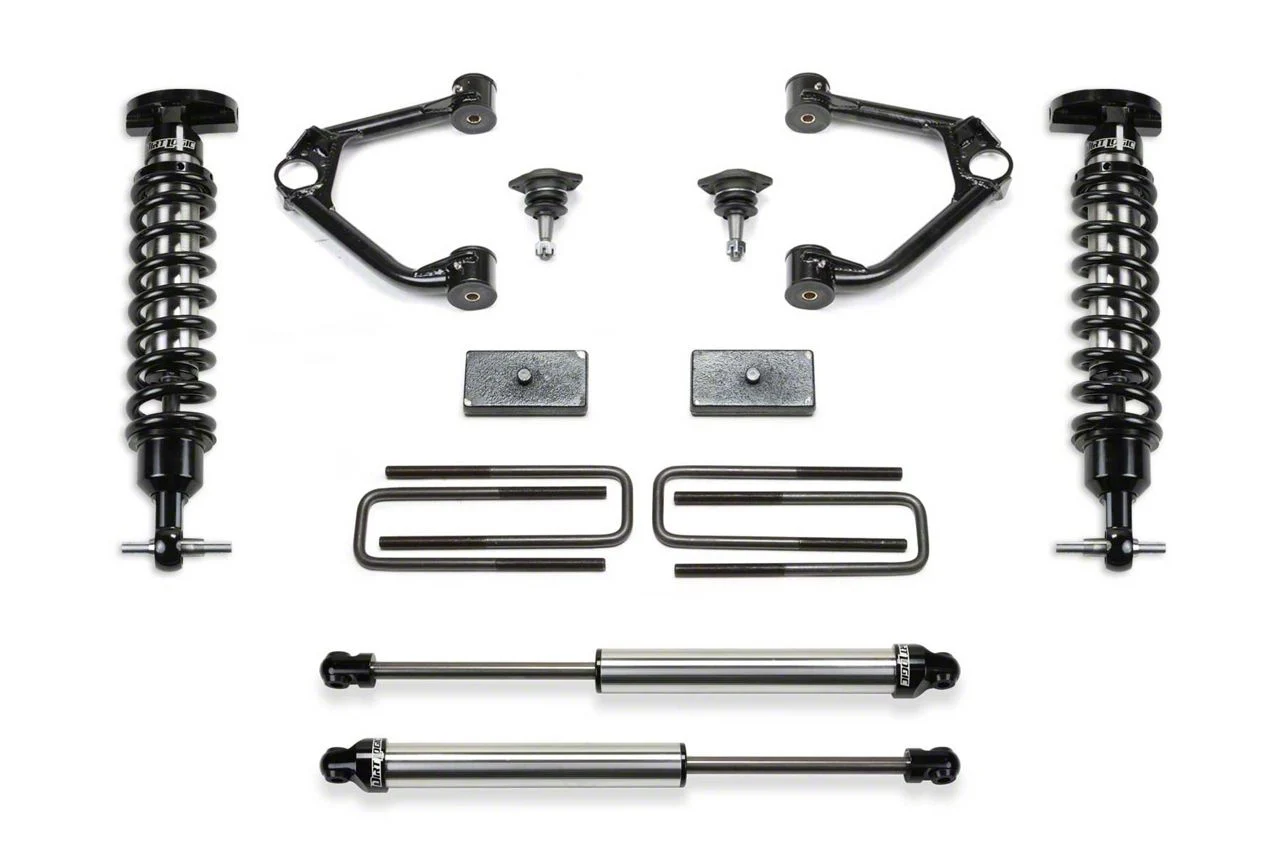

Fabtech 1.50-Inch Ball Joint Upper Control Arm Lift Kit with Dirt Logic 2.5 Coil-Overs and Dirt Logic 2.25 Shocks (19-24 Sierra 1500 AT4, Excluding Diesel)

Description

Bolder Stance. Add a commanding, off-road stance to your AT4 Sierra by upgrading to a Fabtech 1.5-Inch Ball Joint Upper Control Arm Lift Kit that includes Dirt Logic 2.5 Coil-Overs and Dirt Logic 2.25 Shocks. With 1.5 inches of lift, this kit can accommodate tires up to 33 x 12.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This Fabtech Lift Kit features tubular upper control arms with heavy-duty ball joints, as well as rear lift block spacers. What’s more, the included Dirt Logic 2.5 Coil-Overs and Dirt Logic 2.25 Shocks provide incredible dampening capacity for aggressive off-road driving.

Dirt Logic 2.5 Front Coil-Overs. Fabtech includes Dirt Logic 2.5 Front Coil-Overs in this kit to ensure controlled dynamics with improved handling. These Coil-Overs have 2.5-inch OD stainless steel bodies with a 2.25-inch OD billet aluminum piston and 7/8-inch NitroSteel® black piston rods. With an adjustable Coil-over construction, these Coil-Overs feature cold wound coil springs and 5/8-inch spherical ball mounting ends.

Dirt Logic 2.25 Rear Shocks. Fabtech Dirt Logic 2.25 Rear Shocks ensure a superior ride, both on and off road. These Rear Shocks have 2.25-inch OD stainless steel bodies with a 2.0-inch OD billet aluminum piston and 7/8-inch NitroSteel® black piston rods. These Shocks are specifically pre-tuned for Fabtech suspensions, accounting for larger tires, providing the finest all around damping.

Upper Control Arms. This Fabtech Lift Kit includes a set of tubular Upper Control Arms equipped with heavy-duty ball joints for improved directional stability and better handling. These upper ball joints allow for extended travel to eliminate binding and provide a smooth quiet ride.

Rear Lift Blocks. Rear lift is obtained with the use of 1-inch blocks and u bolts. These lift blocks are cast from iron steel for superior strength. The included u bolts and fasteners allow for a straight forward installation.

No Welding Required. Fabtech engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 4 hours time.

Application. This Fabtech 1.50-Inch Ball Joint Upper Control Arm Lift Kit with Dirt Logic 2.5 Coil-Overs and Dirt Logic 2.25 Shocks is designed to fit 2019-2024 GMC Sierra 1500 AT4 4WD models, excluding standard cab and Diesel.

Technical Note. Will not fit models equipped with adaptive ride control. Not for use with OEM wheels and tires.

Recommended Tire Wheel Sizes.

• 33/12.50R18 – 18×9 with 5-inch backspacing, with minor trimming
• 295/65R18 – 18×9 with 5-inch backspacing, with minor trimming
• 33/12.50R20 – 20×9 with 5-inch backspacing, with minor trimming
• 295/55R20 – 20×9 with 5-inch backspacing, with minor trimming

Fabtech K1153DL

CA Residents: WARNING: Cancer and Reproductive Harm

• Suspension Lift Kit
• Front Lift – 1.5 Inch; Rear Lift 1.0 Inch
• Corrects Factory Rake for a Level Stance
• Increases Ground Clearance for Improved Off-Roading
• Tubular Upper Control Arms with Heavy Duty Ball Joints
• Dirt Logic 2.5 Front Coil-Overs
• Dirt Logic 2.25 Rear Shocks
• Steel Rear Lift Blocks
• Accommodates up to 33-inch Tall Tires
• Straight Forward Bolt-on Installation
• Not for use with OEM Wheel and Tires
• Will Not Fit Adaptive Ride Control Models
• Fits 2019-2024 GMC Sierra 1500 AT4 4WD, Excluding Standard Cab and Diesel
