Description

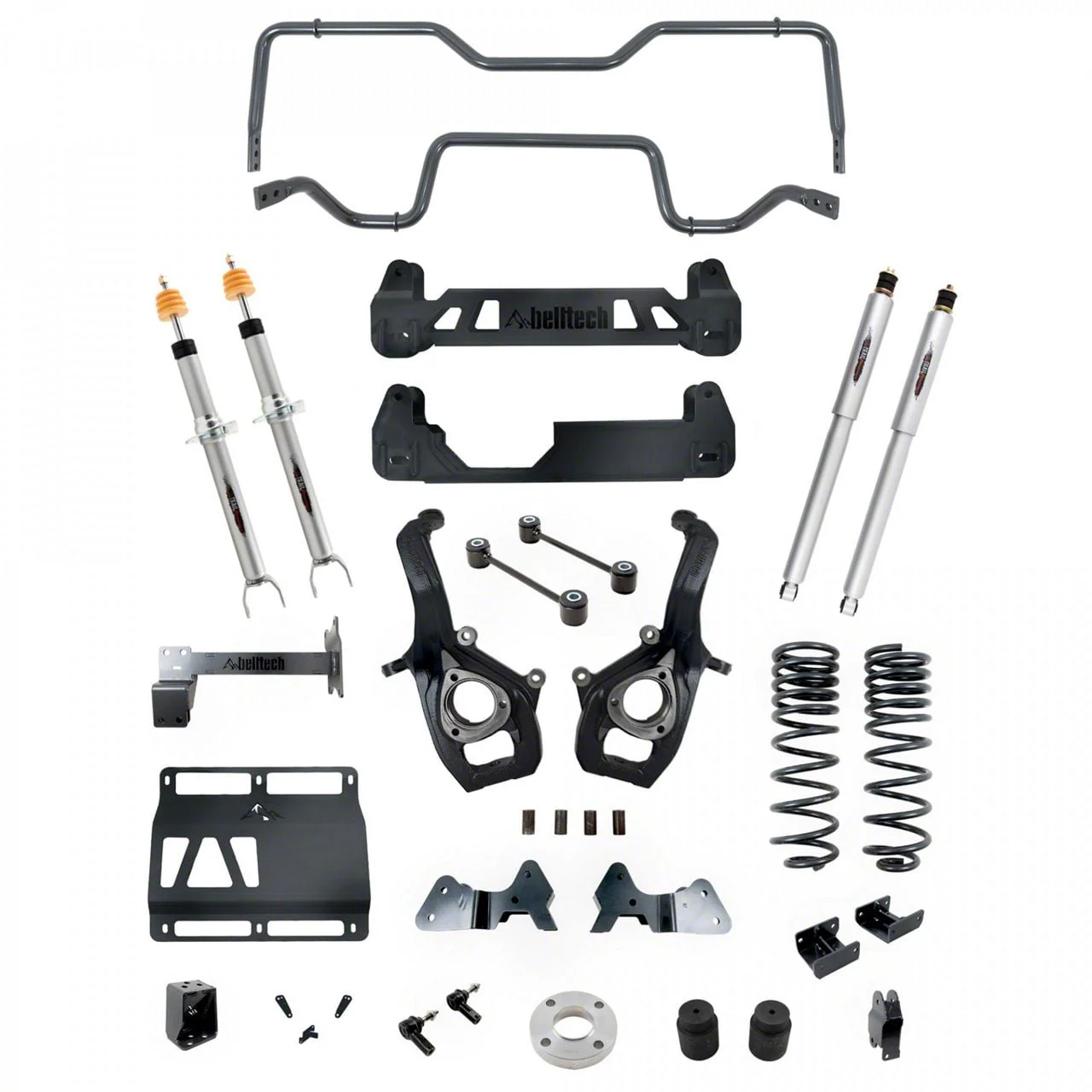

Suspension Lift Kit. The Belltech 6 to 8-Inch Suspension Lift Kit with Trail Performance Shocks and Struts significantly elevates the ride height of the Ram 1500 while enhancing off-road capability and overall driving dynamics. Designed to provide up to 8 inches of front lift and 4 inches in the rear, this kit allows for the installation of larger 37-inch tires, improving clearance and aesthetic appeal. It is essential for enthusiasts seeking to boost their truck’s performance and stance without sacrificing ride quality.
Construction and Appearance. This lift kit is precision engineered in the USA using high-quality materials including durable replacement spindles, thick ¼-inch high clearance cross-members, and billet aluminum driveshaft spacers. The components are designed for strength and longevity, featuring a robust finish that resists corrosion and wear, ensuring both functionality and a refined, high-performance look.
Installation. Installation is moderately challenging and best suited for professional or experienced DIY mechanics. The kit includes brackets and components engineered to bolt in place without the need for any drilling, streamlining the setup process.
Warranty. The lift kit comes with a complete limited lifetime warranty, underscoring the product’s durability and the manufacturer’s confidence.
Application. Specifically fit for 2019 through 2024 Ram 1500 4WD models without air ride suspension, excluding EcoDiesel, RHO, and TRX variants. Note that it does not fit eTorque models or OEM 22-inch wheels featuring a larger wheel bearing assembly.
Belltech 153712TPS
CA Residents: WARNING: Cancer and Reproductive Harm
- Fits 2019-2024 Ram 1500 4WD All Cabs Except Classic Body
- Will Not Fit eTorque Models
- Will Not Fit OEM 22 Inch Wheels Due To Larger Wheel Bearing Assembly (Check Build Codes WPM or WPZ)
- 18-20 Inch OEM Wheels With 5.25 Inch Backspacing Need 5mm Wheel Spacer
- Maximum Tire Diameter 37 Inch
- Recommended Wheel Backspacing 5 Inch
- Front Lift Height 6.0 Inches To 8.0 Inches
- Rear Lift Height 4.0 Inches
- Includes Patented Front Trail Performance Adjustable Struts
- Replacement Spindles Eliminate Bump Steer
- One Piece Differential Drop Down Bracket Maintains OE Alignment
- Quarter Inch Thick High Clearance Cross Members
- New Alignment Cam Bolts And Billet Aluminum Driveshaft Spacer Included
- Rear Control Arm Drop Down Bracket Maintains Stock Anti-Squat
- Rear Progressive Rate Coil Springs And Brake Line Relocation Brackets
- Track Bar Relocation Bracket For Centering Axle
- Extended Length Sway Bar Links And Rear Twin-Tube Custom Tuned Trail Performance Shocks
- Rear Bump Stop Extensions Included
- Complete Limited Lifetime Warranty Provided
- Fits 19-24 4WD RAM 1500 w/o Air Ride, Excluding EcoDiesel, RHO & TRX
| Brand | Belltech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Brand of Shocks | Belltech |
| Rear Lift Type | Coil Spring |
