Description

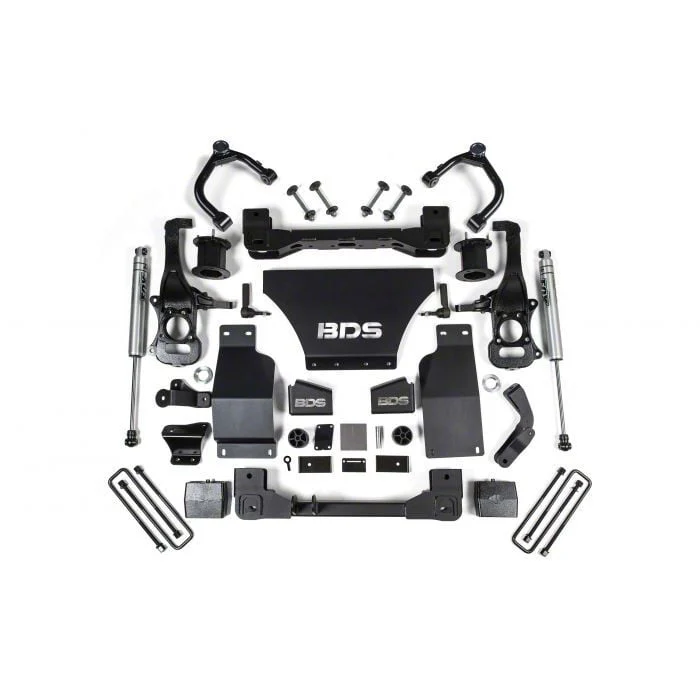

SUSPENSION LIFT KIT. The BDS 4-Inch Suspension Lift Kit with FOX 2.0 Performance Shocks enhances the Chevy Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 by improving ground clearance, off-road capability, and overall vehicle stance. It is engineered to maintain proper suspension and steering geometry for both off-road and on-road use, allowing clearance of larger tires up to 35 inches in diameter.
Construction and Appearance. This kit features high-strength, laser-cut 1/4-inch thick steel crossmembers designed for high clearance, tubular upper control arms constructed from 1.5-inch diameter steel with a durable black powder coat finish, and CNC-machined ductile iron steering knuckles. The FOX 2.0 Performance Series shocks provide a robust aluminum monotube design with anodized finish and precision valving for excellent ride control and durability.
Installation. Installation is rated as difficult and requires frame bracket modification, welding, cutting, and a ball joint separator. Specialized tools and experience are recommended to ensure proper fitment and vehicle safety.
Warranty. Includes Factory Protection Plus drivetrain warranty coverage.
Application. Designed specifically to fit 2019 through 2026 Chevrolet Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 4WD gas models. The diesel variant must be used for 2.7L turbocharged models due to intercooler pipe and skid plate clearance requirements. Factory 17-inch and 18-inch wheels are not compatible after installation because of tie rod end interference.
BDS BDS1805FS
CA Residents: WARNING: Cancer and Reproductive Harm
- 4-Inch Suspension Lift Designed To Improve Stance, Performance, And Capability
- Includes Top Mounted Strut Spacers, Heavy Duty Upper Control Arms, And High-Clearance 1/4-Inch Thick Steel Crossmembers
- Multipiece Differential Relocation Brackets And Heavy Duty Skid Plates For Offroad Protection
- CNC-Machined Ductile Iron Steering Knuckles And Replacement Tie Rod Ends To Correct Steering Geometry And Maintain ESC Compliance
- Sway Bar Drops, Bump Stop Extensions, Brake Line Brackets, And CV Spacers Included
- Heavy Duty Rear Lift Block With New U-Bolts Retains Ride Quality And Load Capacity
- Precision Tuned Rear Shock Options: NX2 Nitro Or Premium FOX 2.0 Performance Series Featuring Aluminum Monotube Design And Application-Specific Valving
- Recommended Tires: Up To 35-Inch Diameter With Specific Wheel Width And Backspacing
- Requires Frame Bracket Modification During Installation
- Factory 17-Inch And 18-Inch Wheels Cannot Be Reinstalled Due To Tie Rod End Interference
- Use Diesel Kit For 2.7L Turbo Models Due To Intercooler Pipe And Skid Plate Clearance
- Heavy Duty Upper Control Arms Constructed From 1.5-Inch OD Tubular Steel With Indexed Ball Joint Cup, Rubber Bushings, And Greaseable Ball Joints Finished In Black Powder Coat
- High Clearance Crossmembers Maximize Ground Clearance And Add Protection
- Factory Protection Plus Drivetrain Warranty Included
- Fits 2019-2026 Chevrolet Silverado 1500 Trail Boss And GMC Sierra 1500 AT4 4WD Gas Models, Excluding 2.7L Turbo Which Requires Diesel Kit
| Brand | BDS |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Brand of Shocks | Fox |
| Rear Lift Type | Cross-Member |
| Shock Style | Non-Reservoir |
