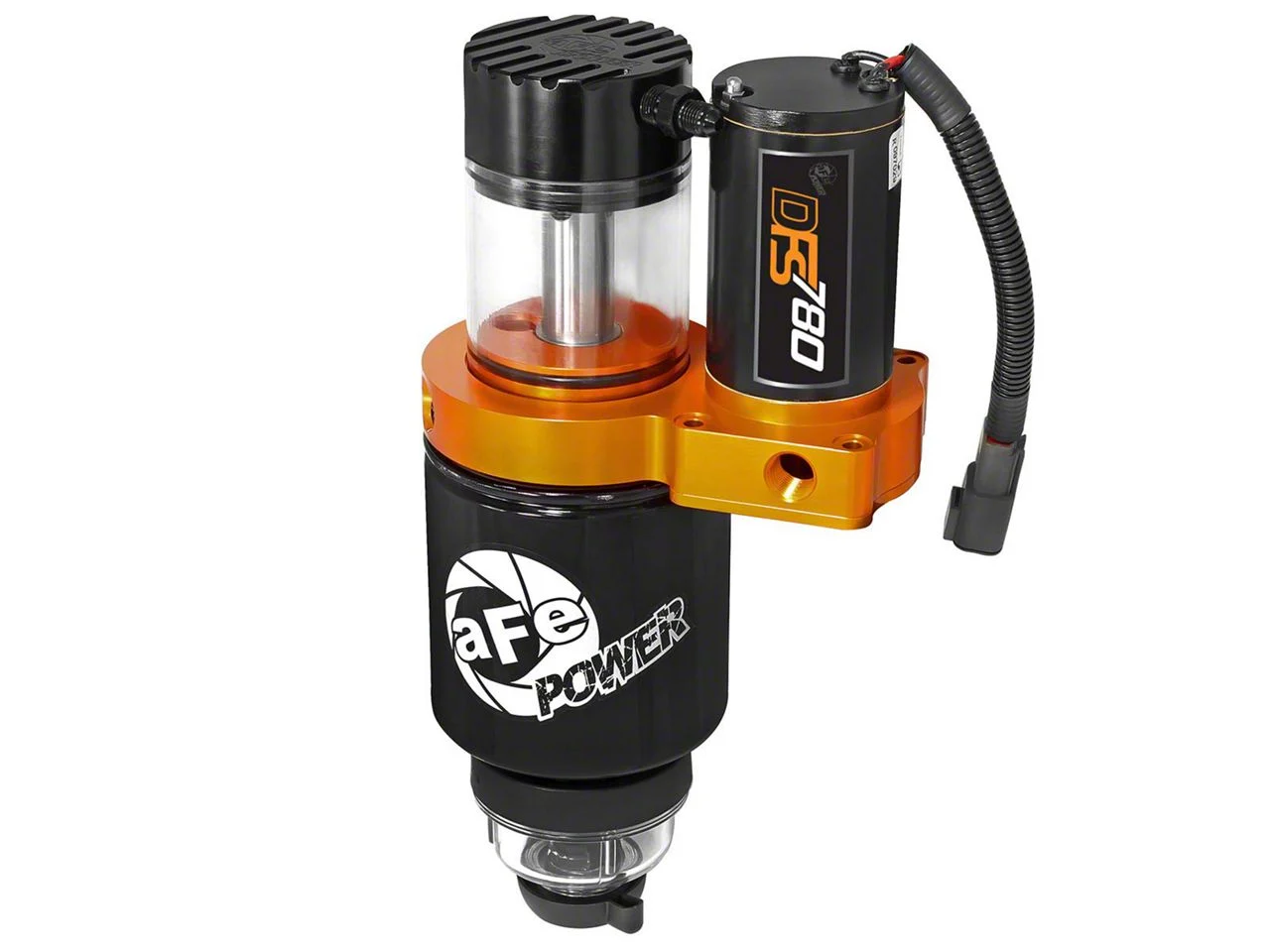

AFE DFS780 Fuel System; Boost Activated (11-12 6.7L RAM 3500)

Description

Boost Activated Fuel System. The AFE DFS780 Fuel System; Boost Activated enhances fuel delivery specifically under boost conditions, providing additional flow when your vehicle demands more fuel for increased power. Designed to work alongside the stock fuel pump, it operates through relay control triggered by ignition and boost pressure, ensuring efficient and reliable fuel supply during high-performance driving scenarios.

_x000D__x000D_

Construction and Appearance. This system features a clear high-impact polycarbonate sight glass for easy fuel level inspection, a billet 6061-T6 aluminum manifold with contoured CNC passages to improve flow, and marine-grade motor construction for enhanced durability against dust and water exposure. The use of helical spur gears running on PEEK bearing surfaces results in quieter operation and increased longevity.

_x000D__x000D_

Installation. Installation is straightforward with a plug & play harness utilizing Deutsch weather-proof connectors, requiring no cutting or modification of stock fuel lines. The process typically takes around two hours and uses a direct bolt-on steel mounting bracket integrated with existing frame holes, eliminating the need for drilling.

_x000D__x000D_

Application. Designed to fit the 2011-2012 6.7L RAM 3500 diesel trucks equipped with the Cummins L6 turbo diesel engine, this fuel system is tailored for this specific vehicle and engine combination to maximize performance and reliability.

AFE 42-12034

CA Residents: WARNING: Cancer and Reproductive Harm

_x000D_
• Clear High-Impact Polycarbonate Sight Glass For Visual Inspection Of Fuel

_x000D_

• Helical Spur Gears Run Quieter Than Straight Cut Gears

_x000D_

• Marine Grade Motor Protects Against Dust And Water

_x000D_

• 187 GPH At 18-20 PSI Flow Rating

_x000D_

• Contoured CNC Manifold Enhances Flow

_x000D_

• Fuel Pressure Gauge Port

_x000D_

• O.E. Quality Viton Seals Compatible With Diesel And Biodiesel Fuels

_x000D_

• Typical Install Time Is 2 Hours

_x000D_

• Built In The U.S.A.

_x000D_

• Filter Included

_x000D_

• Coupler Included

_x000D_

• Relay Controlled With Plug & Play Harness Using Deutsch Weather-Proof Connectors

_x000D_

• Billet 6061-T6 Aluminum Manifold Eliminates Porosity Concerns

_x000D_

• PEEK Bearing Wear Surfaces Reduce Noise And Wear

_x000D_

• Direct Bolt-On Steel Mounting Bracket Using Existing Frame Hole

_x000D_

• Fits 11-12 6.7L RAM 3500
